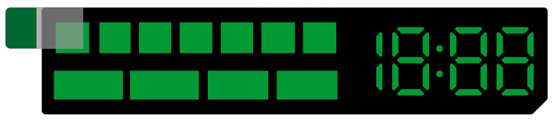

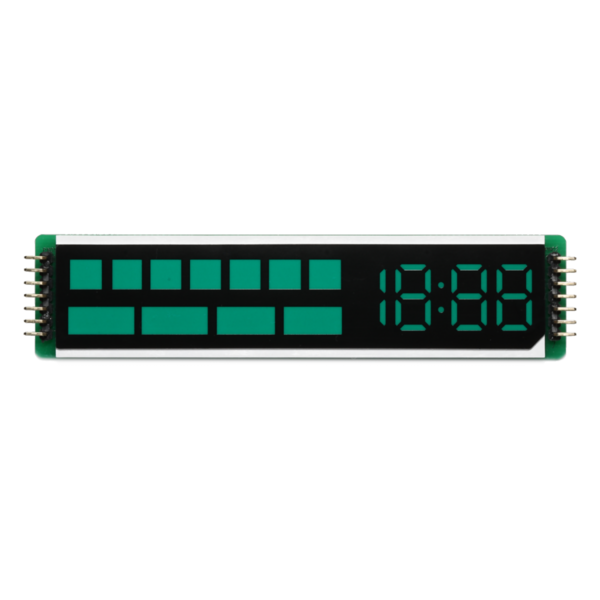

LED DISPLAY

SPECIFICATIONS

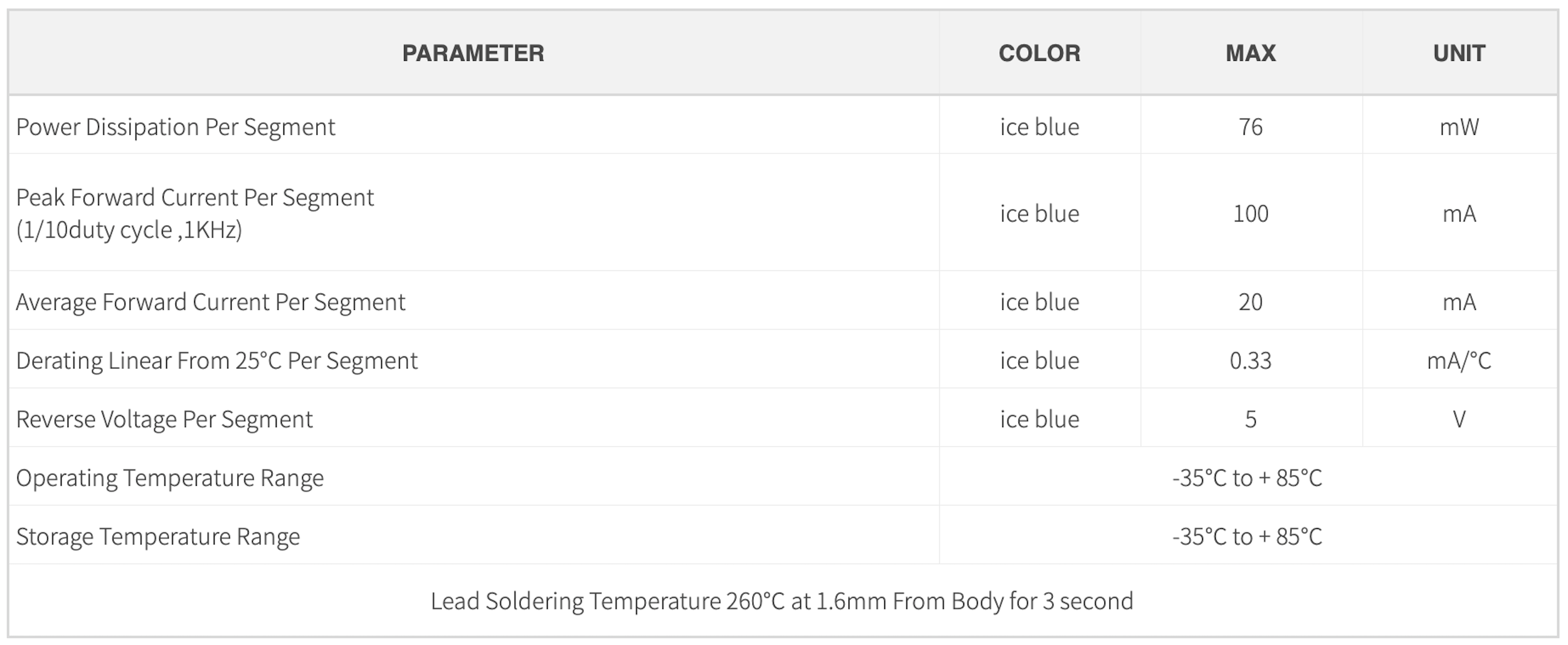

ABSOLUTE MAXIMUM RATINGS (Ta=25℃)

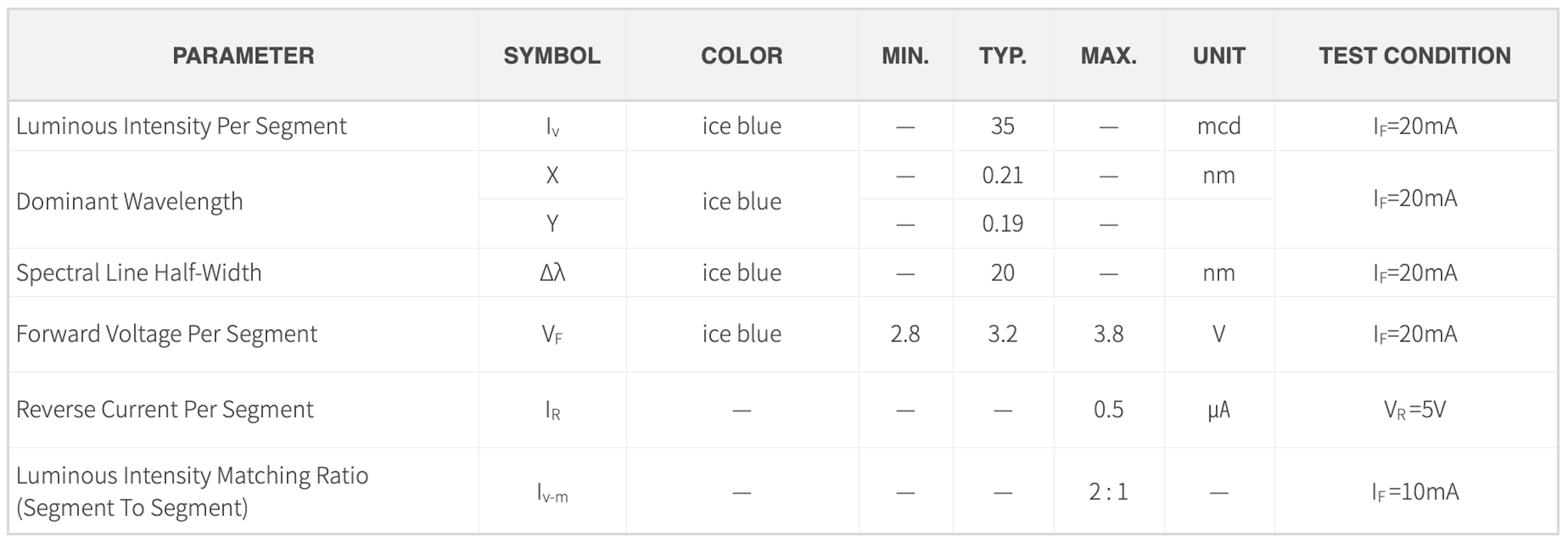

ELECTRICAL/OPTICAL CHARACTERISTICS (Ta=25°C)

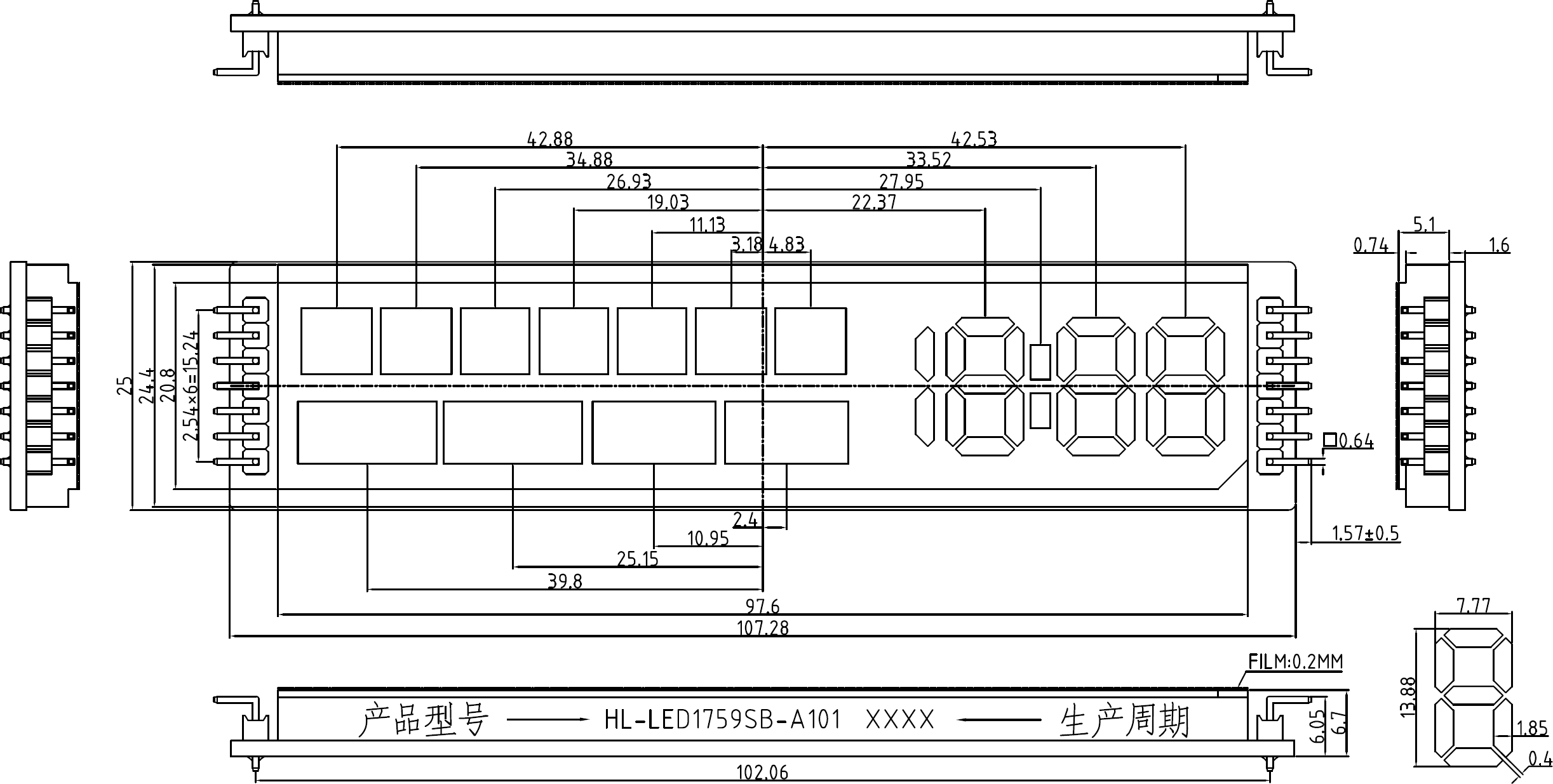

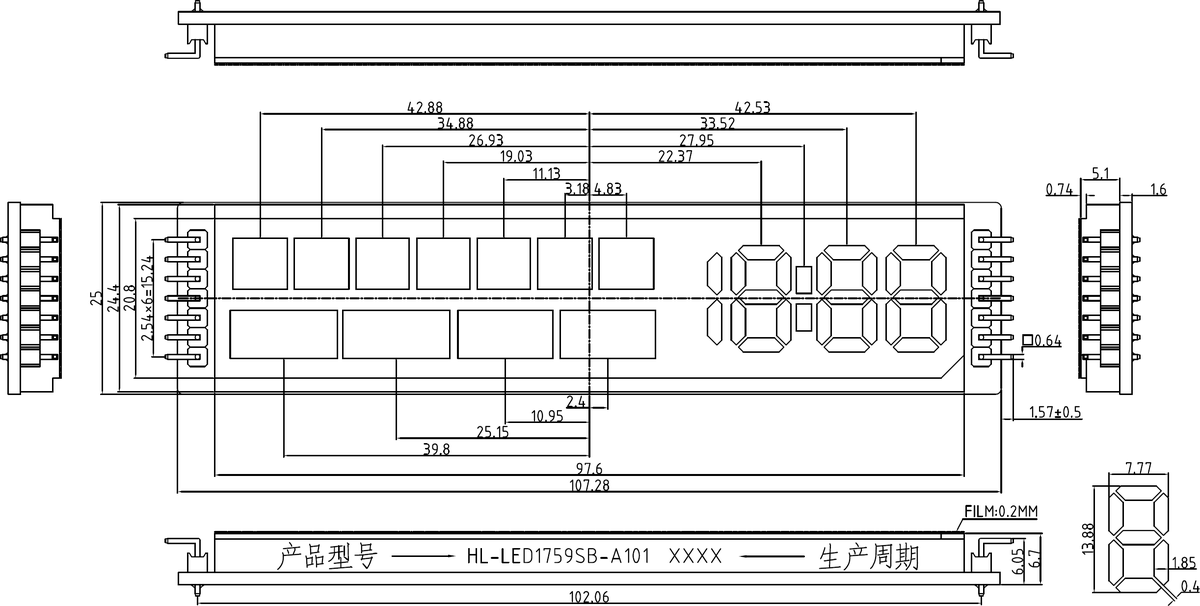

DIMENSIONS

NOTES : All dimensions are in millimeters (inches) tolerance are ±0.25mm(0.010) unless otherwise noted

다운로드

제품명	제목
HL-LED1759SB-A101	제품명 : HL-LED1759SB-A101 HL-LED1759SB-A101 사양서	다운 보기
